Description
LEADTIME 14 WEEKS ALSO AVALIABLE WITH ACRYLIC ADHESIVE

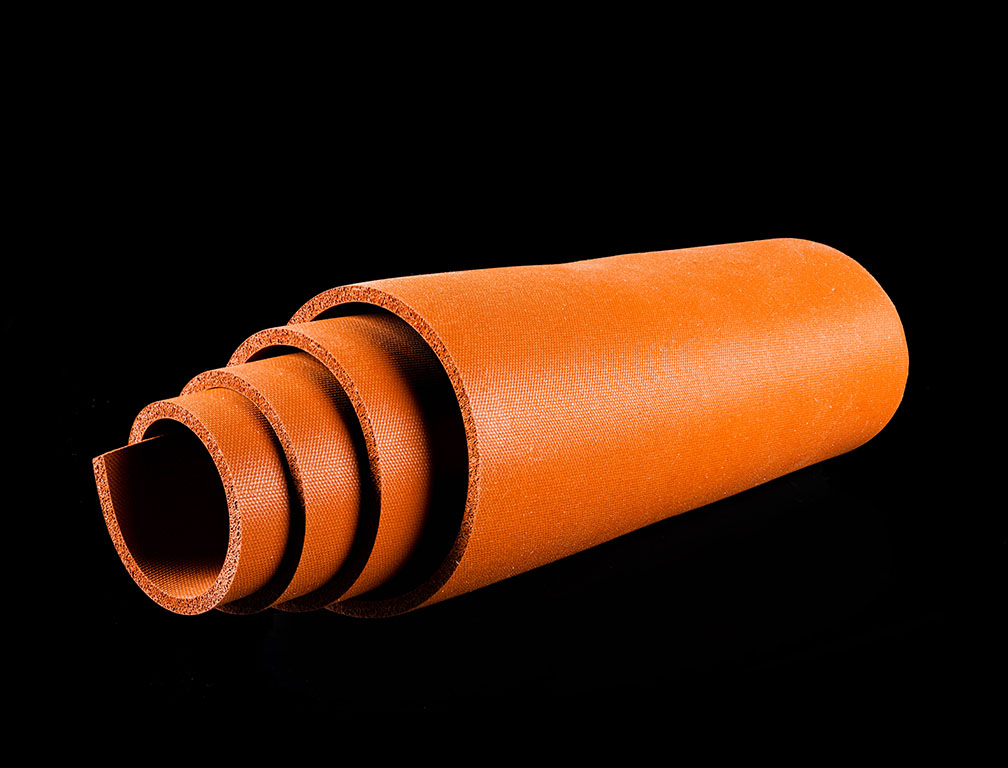

Our Silicone sponge rubber is a specification grade closed cell silicone sponge that can be used in most gasketing applications. The material can be used in most gasketing applications. The material is flexible and compressible and designed for use in extreme temperature ranges, with excellent weatherability, compression set resistance, electrical strength and non-stick properties.
Also available in a firm density. Please contact us if you require this density.
Product: R10470 M
| Thickness in. mm |
.031 (.79) |
.063 (1.59) |
.094 (2.38) |
.125 (3.18) |
.187 (4.76) |
.250 (6.35) |
.375 (9.53) |
.500 (12.7) |
.750 (19.05) |
Continuous Roll
36 in. (914mm) |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
– |
– |
– |
Sheets
36in x 36in. (914mm x 914mm) |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Data
*Shelf life is 10 years from date of shipment from the manufacturer for base material when stored in original packaging at temperature up to 21 degrees Celsius and 50% relative humidity (see the applicable data for pressure sensitive adhesive options).
| Typical Properties | Test Method | Typical Value |
|---|
| Compression Deflection: psi (k/Pa) | ASTM D1056 | 10 (70)
|
| Elongation % | ASTM D412 | 150%
|
| Tensile Strength: psi (kPa) | ASTM D412 | 90 (621)
|
| Compression Set % | ASTM D1056 | 15%
|
| Density: lbs/ft3 (kg/m3) | ASTM 3574 | 29 (470)
|
| Water absorption % | ASTM D471 | <5%
|
| Operating Temperature (Celsius) | - | -73 to + 260
|
| Colour | - | Orange / Tan (or Black / Grey)
|
| Shelf Life
| | 10 years* |
All values shown are approximate and are intended solely as a guide. No responsibility is accepted for their accuracy. It is the user’s responsibility to determine the suitability of the product for the intended application.
